Profinet PN5203

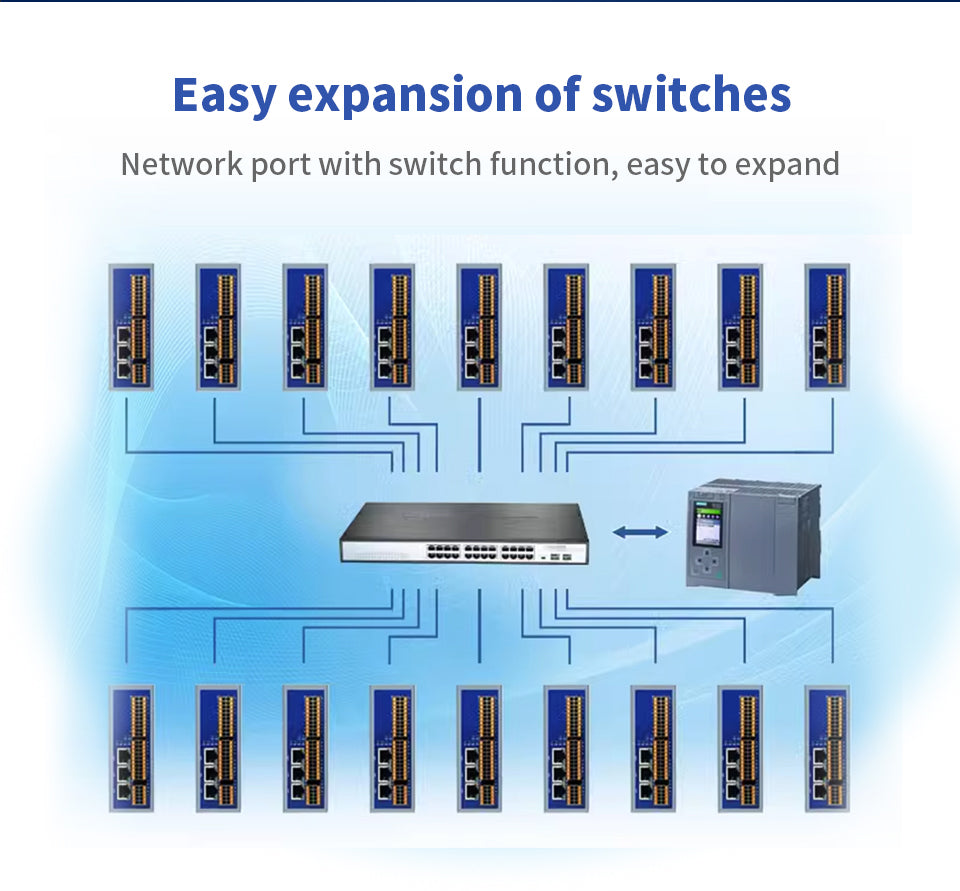

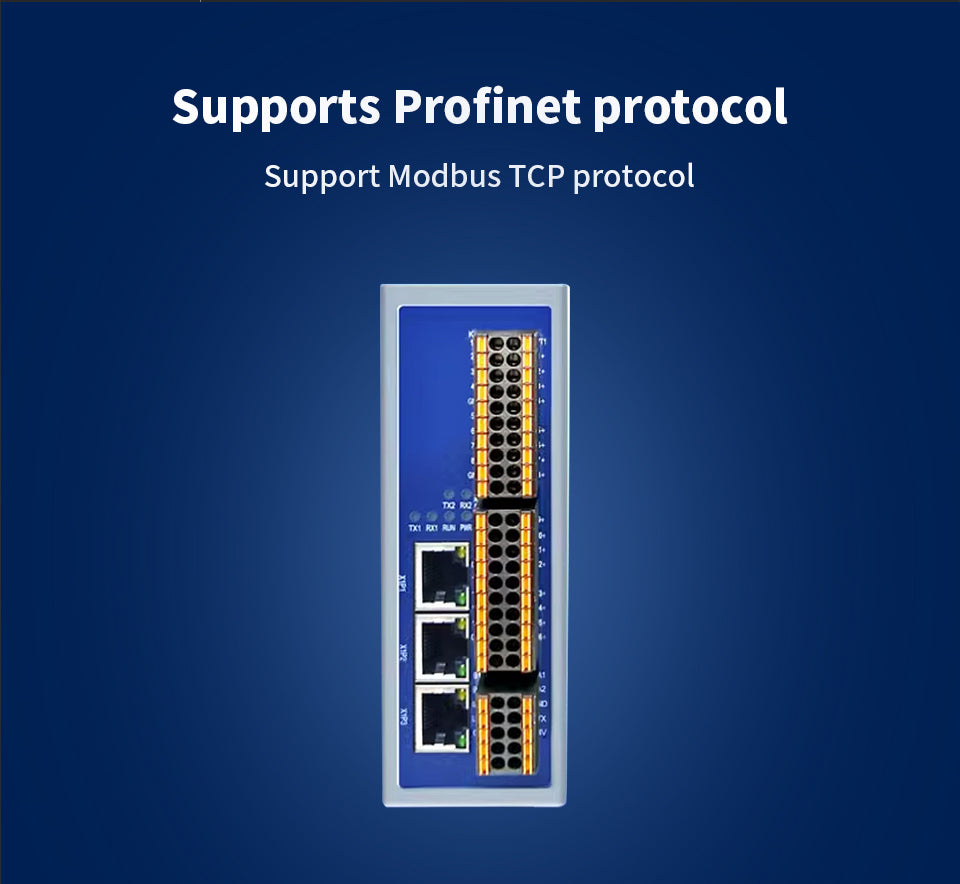

Profinet I/0 High Speed Ethernet Communication Industry 4.0 Standards High precisionStable and reliable High-SpeedSupport profinetModbus-RTU LARGE COVERAGERealtime andreliable industrialEthernet networking EASY NETWORKINGCompletely breakingthrough spacelimitations High-performanceExpanding andincreasing capacity isextremely simple,convenient, and reliable Authentication FCC/CE Profinet Remote lO Module This product is a remote distributed l0 module that supports the Profinet protocol and can serve asa Profinet sub station/slave module for Siemens PLC. lt integrates Modbus RTU and Profinetprotocol conversion gateway, and supports PLCs such as Siemens 200smart, 300,1200,1500,etc Digital quantity 16 in and 16 out (resource quantity and type optional) Supports Profinet protocol, Modubs TCP External 2-way photoelectric isolation 485 to profinet Support for GSD file import Supports S7 and Botu Integrated three network ports with switching functionConvenient implementation of linear topology network Digitalinput:supportsPNP anaNPN adaptationDigital output: sub relays and transistorsAnalog quantity: accuracy of12 bits, 0.1%0+20Ma:0-20000/4-20Ma:4000-200000-10V:0-10000Temperature: Supports PT100 or PT1000 thermistors, B/J/K/R/S/N type.with an accuracy of0.1 Working temperature: -20~50·CPower supply: 24V Supports Profinet protocolSupport Modbus TCP protocol Easy expansion of switches Network port with switch function, easy to expand Flexible assembly and unlimited expansion Implement reliable industrial networking, completelybreak throughspace limitations, expand capacity, and be simple and convenient Support Siemens 200smartSupport Siemens 1200Support Siemens 1500Support Siemens 300 Supports multiple Siemens series Easy to expand without restrictions Three network ports Extension terminal GSD file import Using Control configuration software, GSD files can be automatically generated for easy import External cold end compensation Stable tracking of ambient temperature for more accurate measurement and smaller errors Network Application Topology Map Profinet ouch Screen Master Station Profinet IOModule Modbus RTU Slave Station Frequency ConverterDistributed lOWeighing instrumentElectricity MeterMeasuring instruments Equipment size Including termlnals and gulde ralls 108X45X125MM(DIMENSIONS) (ContainHJ5203/5206/5207/5208/5209 Series) Durable all series EMC certified lead-free with 3-3/CE certification Customized development+professional technical support Widely Used In Various Industries Greenhouse farmland Smart Home Livestock and aquaculture Access controland security Intelligent parking Pump valve control Smart building Digital meter Work Modes Enable You To Navigate Various AutomationScenarios With ease In this mode, if the relay is not operated once, it will remain in a state of recovery for acertain period of time after flipping over Jog command Supports multiple simultaneous jogs ControlOutput Upper Computer Flash mode: If the relay is not operated once, it will close for a certain period of time andthen automatically disconnectFlashing mode: lf the relay is not operated once, it will open for a certain period of timeand then close itself Actual time=set number * 0.1, in seconds LOCAL LINKAGE In this mode, the control output makes corresponding actions based on the switchinput (linkage or state flip once) Electric Light Network interface WIFI Solenoid Valve Upper Computer Controller Electrical Machinery Other Equipment Switch input quantity NPN/Dry Contact Self reset/hold switch/sensor DUAL MACHINE LINKAGE MODE in this mode, two devices are paired to achieve interactive linkage control where the triggerand control points of the switch are not together, supporting (hold/self reset) switches andswitch sensors (NPN type) Network intertace/WIFI The distance between A and B is relatively long A-point controloutput Feedback input ofswitch value at point B Smart Home SolutionsThe controlinputis transmitted to
