EM500-LGT LoRaWAN® Light Sensor

EM500‑LGT is a LoRaWAN light sensor for harsh‑environment illuminance detection. It transmits data over long range without wiring and offers up to 10‑year battery life for remote light monitoring in smart agriculture, urban lighting and more.

1/3

EM500-LGT LoRaWAN® Light Sensor

Product Features

• Long‑Range Wireless: LoRaWAN® 10km line‑of‑sight, global bands CN470/EU868/US915/AU915/KR920/AS923

• Decade‑Long Battery: 19000mAh replaceable Li‑SOCl₂ battery, up to 10‑year lifespan (10‑min interval, 25°C)

• Precision Light Measurement: 0‑100000 lux range, ±3% accuracy, 1 lux resolution

• Harsh Environment Ready: IP67 transceiver / IP65 sensor,‑30°C~70°C transceiver temp,‑30°C~60°C sensor temp, ABS+PC & aluminum alloy housing

• Convenient Configuration & Reliable Data: NFC + APP / USB‑C setup, local 1000‑entries data storage, data retransmission, threshold alarm, OTAA/ABP Class‑A support

EM500‑LGT Specifications

Parameter	EM500‑LGT
Wireless Standard	LoRaWAN® Class A, OTAA / ABP
Frequency Bands	CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923
Measuring Range	0‑100000 lux
Accuracy	±3%
Resolution	1 lux
Power Supply	19000 mAh ER34615 Li‑SOCl₂ replaceable battery
Battery Life	Up to 10 years (10‑min interval, 25 °C)
Operating Temperature	Transceiver: ‑30 °C ~ +70 °C; Light Sensor: ‑30 °C ~ +60 °C
Ingress Protection	Transceiver: IP67; Light Sensor: IP65
Housing Material	Transceiver: ABS+PC (Grey); Sensor: Aluminum alloy (White)
Cable Length	3 m
Data Feature	1000 local entries, data retransmission, threshold alarm
Configuration	NFC, Mobile APP, USB‑C, LoRaWAN downlink
Mounting Method	Pole, Wall, DIN‑Rail mounting

Application scenarios

EM500‑LGT is applied for smart agriculture, greenhouse lighting control, urban street light automation, smart building daylight management and weather monitoring. Its rugged housing and long‑term battery performance make it ideal for remote, hard‑to‑reach locations with no field wiring.

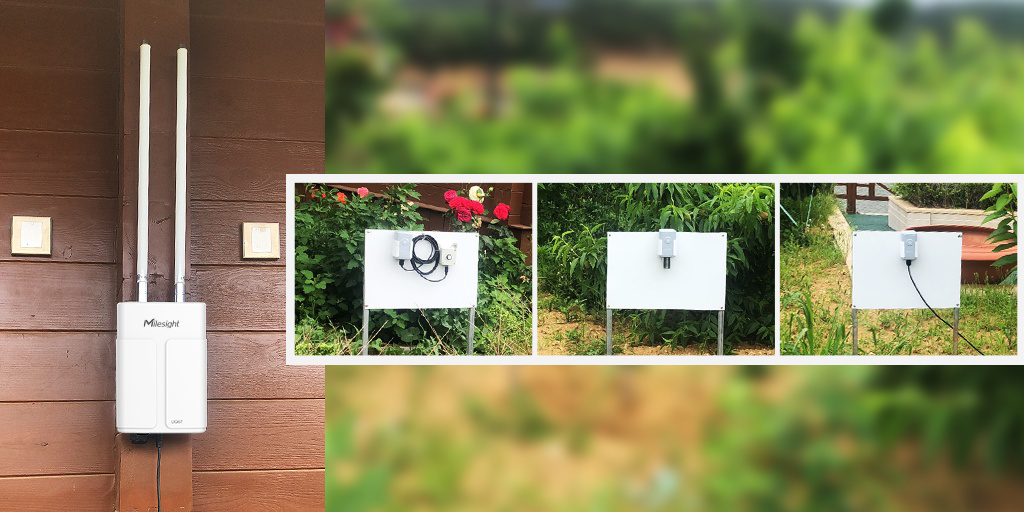

Application Case

◂ Pain Point▸

Fig plantations suffer from insufficient real‑time growth environment data, inefficient manual irrigation causing water waste or shortage, and poor unified management amid expanding planting scale, which leads to unstable fig yield and high labor costs.

◂ Solution▸

EM500‑LGT LoRaWAN Light Sensor — Captures orchard illuminance vital for fig photosynthesis, supports long‑term outdoor deployment with long battery life and IP‑grade protection
EM500‑SMTC Soil Sensor — Monitors soil moisture, temperature and conductivity for irrigation reference
EM500‑CO₂ Multi‑parameter Sensor — Detects CO₂, temperature, humidity and barometric pressure for orchard micro‑climate assessment
UC511 Solenoid Valve Controller — Performs cloud commands to enable automatic irrigation
UG67 Outdoor LoRaWAN® Gateway — Collects field sensor data over long‑range LoRaWAN®, no field cabling needed
Milesight IoT Cloud Platform — Provides 24/7 remote monitoring, unified device management and smart data analysis

Result: Optimized growing conditions improve fig quality and output. Automatic irrigation reduces labor and water waste. Cloud‑based centralized management simplifies large‑orchard operation; scalable LoRaWAN® solution lowers total operating expenses.
