Product Features
• WEB HMI: HTML5‑based, access via panel, phone, iPad, PC browsers
• Built‑in Gateway: BACnet/Modbus/OPC UA/MQTT server, open third‑party interface
• Software: JS logic control, permission & timer management, MQTT cloud upload
• Hardware: 4” capacitive touch, 1x Ethernet & dual RS485, Linux OS
• Rugged Design: 86‑box mounting, ‑10~+50℃, 12‑24V AC/DC, ≤6W power
• Application: Building automation & industrial monitoring for PLC, DDC, meters etc.

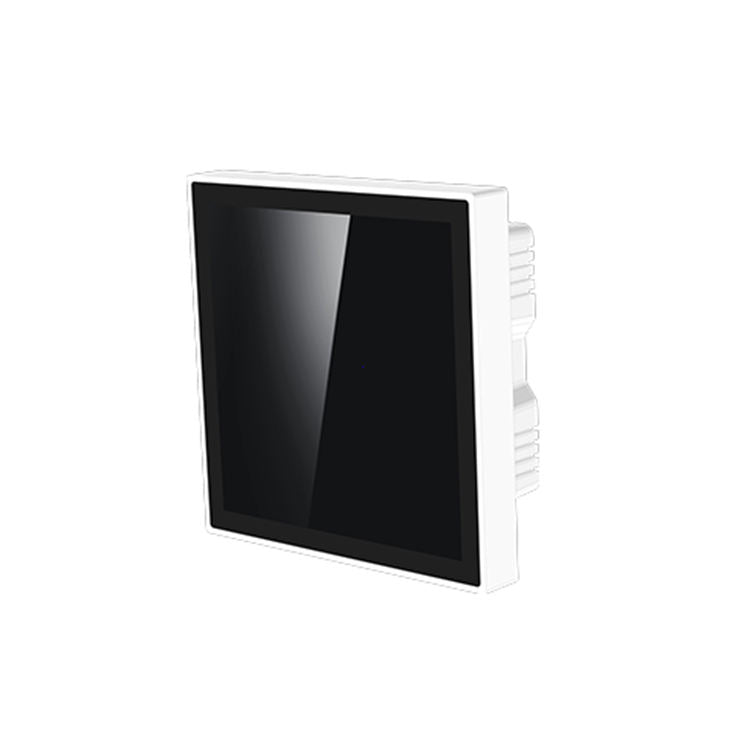

| Model | I4‑1002, 4‑inch WEB HMI with gateway function(86‑box mounting) |
| Core Configuration | Single‑core 800MHz CPU, 512M RAM, Flash 8GB, Linux OS |
| Display & Touch | 4" TFT, 480*480 resolution, capacitive touch screen |
| Communication Interfaces | 1×10/100M adaptive Ethernet, 2×RS485 serial ports |
| Supported Protocols | BACnet / Modbus / OPC UA / MQTT server, open HTTP third‑party interface |
| Register Capacity | Max 512 points for each BACnet / Modbus register type |
| WEB HMI Feature | HTML5 based, access via panel, phone, iPad, PC browser |
| Software Functions | JS logic control, user permission management, timing & event trigger, MQTT cloud upload |
| Power Supply & Consumption | AC/DC 12‑24V, Power consumption ≤6W |
| Operating Environment | -10℃ ~ +50℃ working;‑20℃~+70℃ storage, Humidity 10%‑90% non‑condensing |
| Storage Humidity | 15%‑95% non‑condensing |
| Mechanical Specs | 86‑type bottom box installation, Weight:150g, ABS plastics housing |
Application scenarios
Building Automation: Monitor and control central air‑conditioning, elevators, fire‑control systems, lighting, electricity & water meters.
Industrial On‑site Monitoring: Connect PLC, DDC, UPS and various field automation devices.
Remote & Local Supervision: Real‑time data access via local panel, mobile phone, iPad or PC browser; support cloud alarm push and third‑party system integration.
