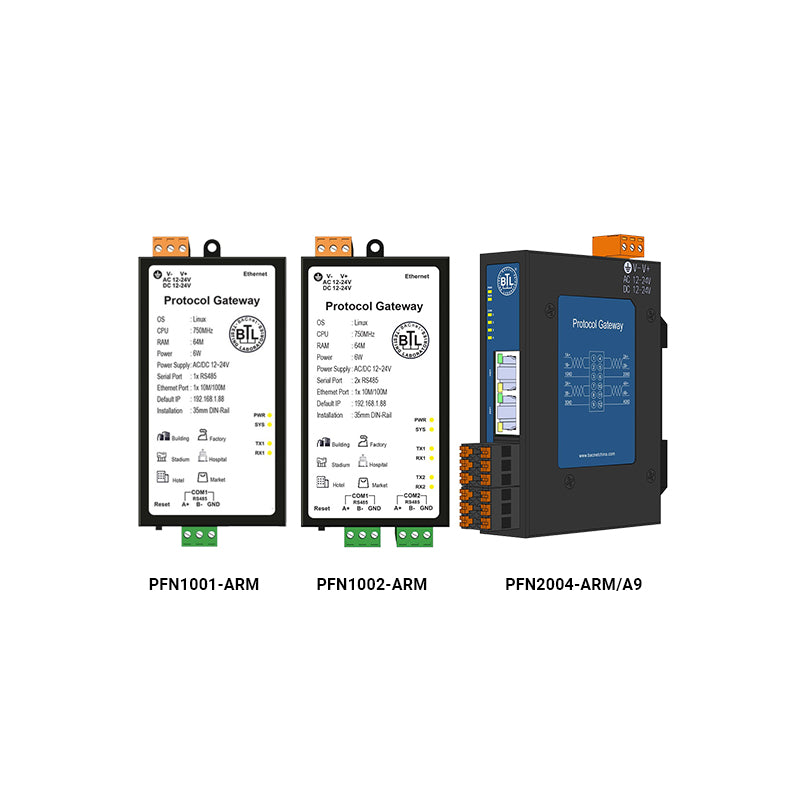

PFN Series Multi-Protocol Siemens S7 Gateway
Convert 500+ industrial protocols to standard Siemens S7 protocol, enabling seamless integration of third-party devices into Siemens WinCC, HMI, and S7 PLC systems—no equipment replacement, plug and play.
Skip to product information
Product Features
• Protocol Conversion: 500+ industrial protocols → Siemens S7 + OPC UA
• System Compatibility: Seamless integration with WinCC, Siemens HMI, S7-200/300/400/1200/1500 PLC
• Deployment Speed: 256 points in 10 mins, 1024 points in 20 mins, 2048 points in 30 mins
• Hardware Reliability: -20℃~+70℃ wide temperature, isolated RS485, DIN rail mounting
• Flexible Scaling: 256~2048 dynamic points, 1~4 serial ports + 1~2 Ethernet ports configurable
• Remote O&M: Built-in web server, real-time data monitoring + online diagnostics
Purchase Ways
Selection and Comparison
| Hardware Parameter Comparison Table | ||||
|---|---|---|---|---|
| Parameter | PFN1001-ARM | PFN1002-ARM | PFN2004-ARM | PFN2004-A9 |
| Support Points | 256 | 512 | 1024 | 2048 |
| Ethernet Ports | 1×10/100M | 2×10/100/1000M | ||
| RS485 Serial Ports | 1 (isolated) | 2 (isolated) | 4 (isolated) | |
| CPU | 750MHz | 1GHz | ||
| RAM/Storage | 64MB/32MB | 512MB/4GB | ||
| Power Consumption | 6W | 8W | ||
| Dimensions | 119×55×33mm | 120×107×27mm | ||
| Weight | 200g | 210g | 300g | |
| Mounting | DIN rail/Wall mount | DIN rail | ||
| Common Core Parameters | |
|---|---|
| Parameter | Value |
| Power Supply | AC/DC 12-24V |
| Operating Temperature | -20℃~+70℃ (Working) / -40℃~+85℃ (Storage & Transportation) |
| Operating Humidity | 20%~90% Non-condensing |
| Material | Galvanized steel |
| Certification | BTL, CE |
Application scenarios
Integrates diverse field devices into unified Siemens S7 networks—smart lighting (KNX, DALI), HVAC (BACnet IP, Modbus TCP), energy management (DLT645, M-Bus), industrial equipment (Modbus RTU, AB PLC), and building automation (VRV, thermostats). Compatible with Siemens WinCC, touch panels, and S7-200/300/400/1200/1500 PLCs.
