Product Features
• WEB HMI: HTML5‑based, multi‑browser access from panel, phone, iPad, PC
• Built‑in Gateway: BACnet/Modbus server, open third‑party interface, MQTT cloud upload
• High Point Capacity: Max 2048 points per register type
• Versatile Software: Multi‑channel alarm, JS/PLC mixed‑programming, permission & timer control
• Industrial Hardware: Quad‑core 1.2GHz CPU, 7" capacitive touch, Ethernet & dual RS485 ports
• Rugged Design: IP65 front panel, 86‑box mounting, ‑10~+50℃, 12‑24V AC/DC, ≤8W power
• Wide Application: Connect PLC, DDC, meters for building automation & industrial monitoring

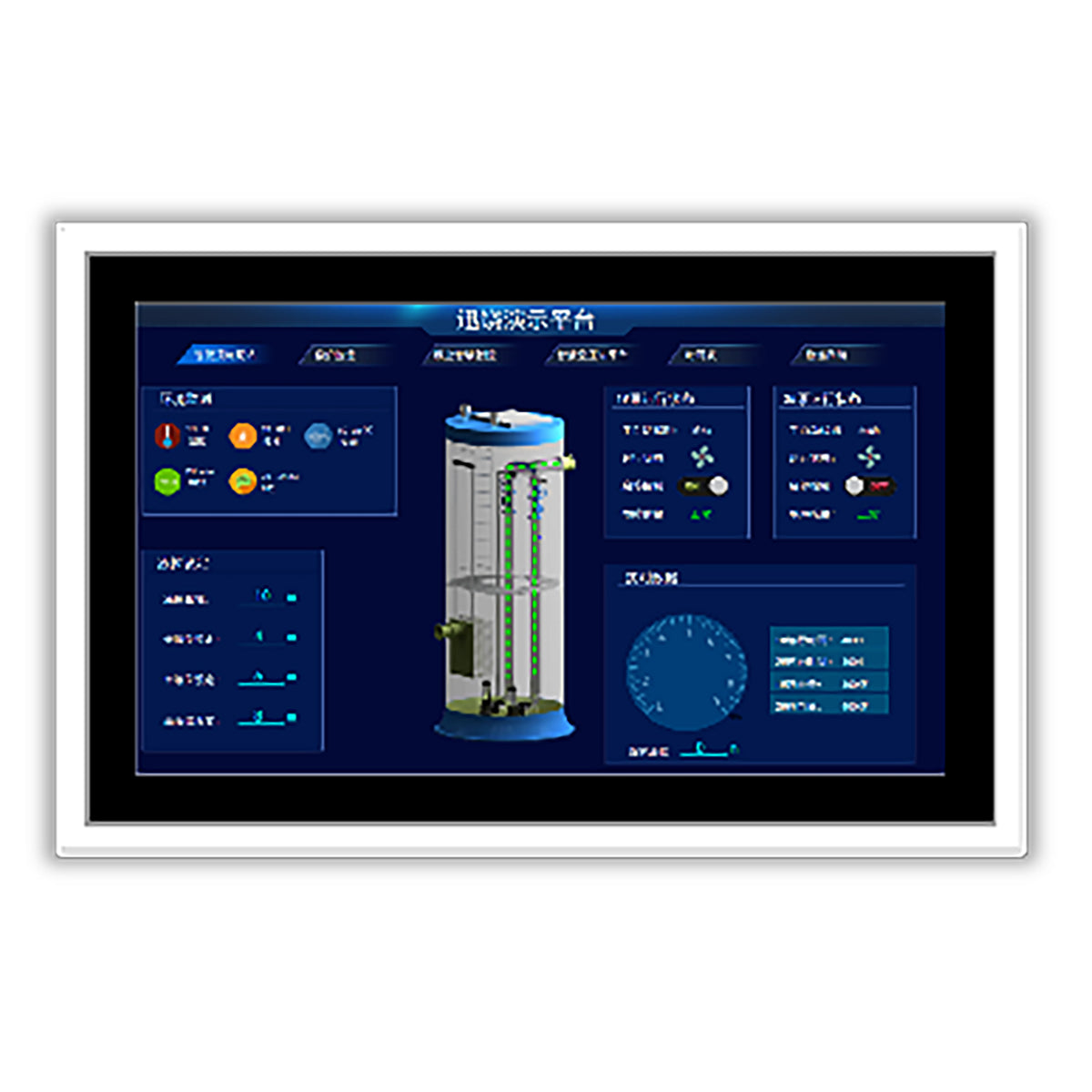

| Model | I7‑1002, 7‑inch WEB HMI with gateway function(86‑box mounting) |
| Core Configuration | Quad‑core 1.2GHz CPU, DDR3 1GB, Flash 8GB, Linux OS |
| Display & Touch | 7" TFT, 1024*600 resolution, capacitive touch screen |
| Communication Interfaces | 1×Ethernet(10/100M adaptive), 2×RS485 |
| Supported Protocols | 500+ protocols, BACnet / Modbus server conversion, MQTT cloud upload |
| Register Capacity | Max 2048 points for each BACnet / Modbus register type |
| WEB HMI Feature | HTML5 based, access via panel, phone, iPad, PC browser |
| Software Functions | Multi‑channel alarm, JS/PLC mixed‑programming, permission & timer control |
| Power Supply & Consumption | AC/DC 12‑24V, Power consumption ≤8W |
| Protection Grade | Front panel IP65, Back shell IP20 |
| Operating Environment | -10℃ ~ +50℃ working, Humidity 10%‑90% non‑condensing |
| Mechanical Specs | 86‑type bottom box installation, Weight:450g, Aluminum front shell, sheet metal rear shell |
Application scenarios
Building Automation: Monitor and control central air‑conditioning, elevators, fire‑alarm systems, lighting, electricity & water meters.
Industrial On‑site Monitoring: Connect PLC, DDC, UPS and other field control devices.
Remote & Local Supervision: Real‑time data viewing via local touch panel, mobile phone, iPad or PC browser; support cloud remote alarm notification.
