Product Features
• WEB HMI: HTML5 architecture, multi‑browser access from panel, phone, PC
• Built‑in Gateway: BACnet/Modbus conversion, connect various field devices
• High Point Capacity: Max 2048 points per register type
• Versatile Software: WeChat alarm, JS/PLC logic, permission & timer control
• Broad Protocol Support: 500+ protocols, custom private protocol available
• Industrial Hardware: Quad‑core CPU, 7" capacitive touch, rich serial & Ethernet ports
• Rugged Design: IP65 front panel, ‑10~+50℃ working temp, 12‑24V AC/DC power

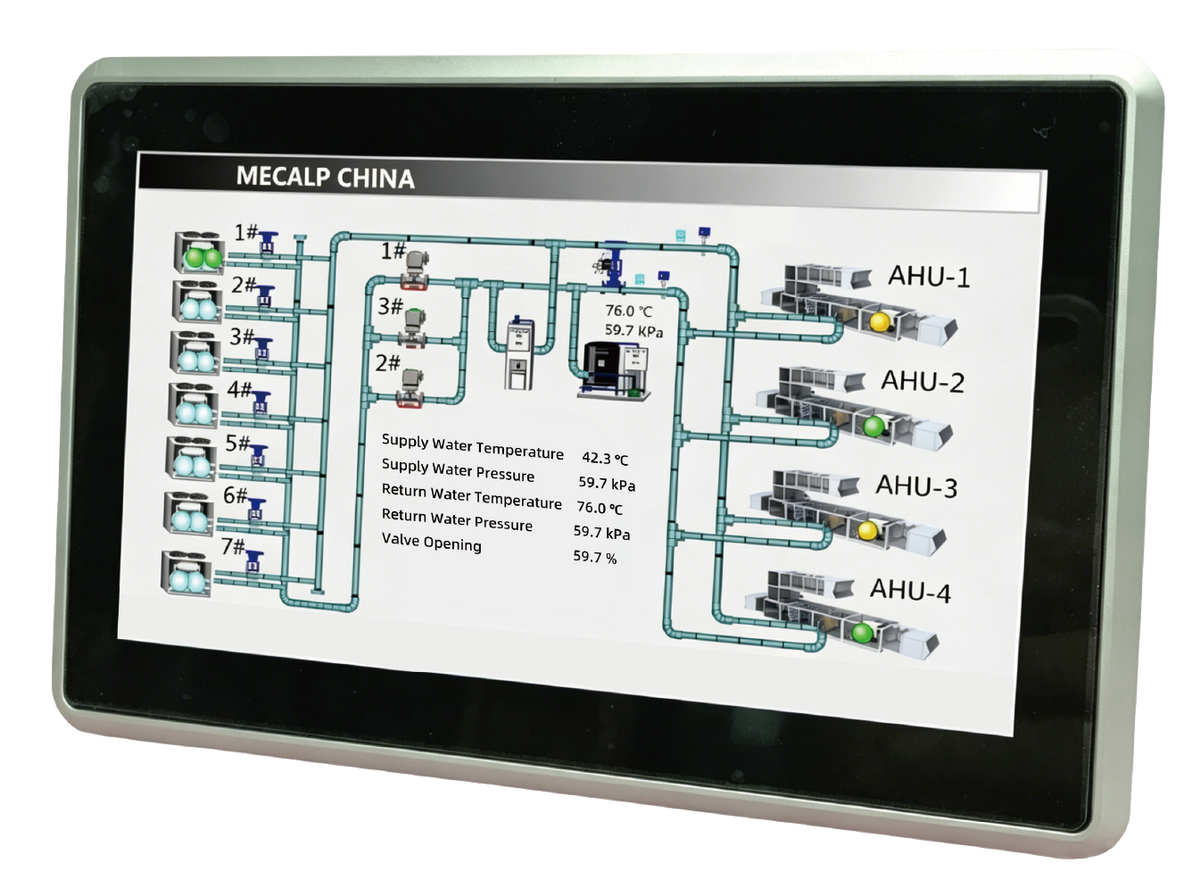

| Model | I7‑1031, 7‑inch WEB HMI with gateway function |
| Core Configuration | Quad‑core 1.2GHz CPU, DDR3 1GB, Flash 8GB, Linux OS |
| Display & Touch | 7" TFT, 1024*600 resolution, capacitive touch screen |
| Communication Interfaces | 1×Ethernet(10/100M), 3×RS485, 1×RS232 |
| Supported Protocols | 500+ protocols, BACnet / Modbus server conversion |
| Register Capacity | Max 2048 points for each BACnet / Modbus register type |
| WEB HMI Feature | HTML5 based, access via touch panel, phone, iPad, PC browser |
| Software Functions | WeChat alarm, JS/PLC logic editor, permission & timer control |
| Power Supply & Consumption | AC/DC 12‑24V, Power consumption ≤8W |
| Protection Grade | Front panel IP65, Back shell IP20 |
| Operating Environment | -10℃ ~ +50℃, Humidity 10%‑90% non‑condensing |
| Mechanical Specs | Cut‑out:180*114mm, Weight:650g, Aluminum‑alloy front shell |
Application scenarios
• Building Automation: Central‑air‑conditioning, elevator, lighting, fire‑protection system monitoring
• Industrial On‑site Monitoring: PLC, DDC, UPS and various field device data collection & control
• Energy Metering Management: Real‑time monitoring of electric meters, water meters
• Remote WEB Monitoring: Multi‑terminal access via panel, mobile phone, PC browser for centralized management
