The UG56 is an industrial 8-channel indoor LoRaWAN gateway connecting 2,000+ nodes across 15 km for smart buildings, campuses, offices, and industrial environments. Triple backhaul backups with Ethernet, Wi-Fi, and optional 4G LTE, a built-in network server, and compatibility with TTN, ChirpStack, AWS, BACnet/IP, and Modbus streamline deployment and system integration.
Product Features
Purchase Ways
| LoRaWAN Specification | 8 half-duplex channels, SX1302 chip |
| Node Connection | Supports over 2000 Class A/B/C end nodes |
| RF Performance | RX Sensitivity -140dBm@292bps, Max TX Power 27dBm |
| Frequency Support | Multi-regional bands including CN470/IN865/EU868/US915 |
| Core Hardware | Dual-core 240MHz 32-bit Xtensa CPU, 8MB PSRAM + 16MB Flash |
| Network Backhaul | 1×RJ45 100M Ethernet, Optional 4G LTE (CAT1)/GSM cellular |
| Power Supply | Type-C (5V/2A), DC 5~12V, 802.3af PoE (with splitter) |
| Dimensions & Weight | φ115×21mm (excl. antenna), 140g (Non-cellular) / 158.2g (Cellular) |
| Mounting Options | Desktop, wall and ceiling mounting |
| Power Consumption | Typical 1.3W, Max 3.1W |
| Operating Environment | Temp -20°C~+50°C, Humidity 0%~95% (non-condensing) |
| Protection Rating | IP30, PC+ABS enclosure (White) |
Application scenarios

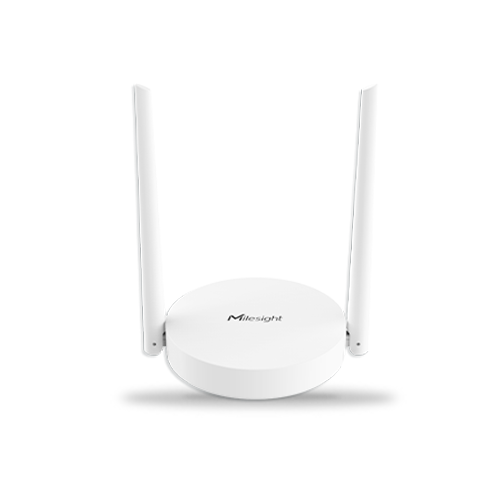

UG63 is a compact, low-power 8-channel LoRaWAN gateway designed for indoor small-to-medium IoT deployments. Featuring space-saving design, flexible mounting and reliable multi-regional coverage, it’s a cost-effective solution for core indoor scenarios:
• Smart Building & Office (environmental monitoring, energy control)
• Smart Retail & Warehouse (inventory/asset tracking, cold chain supervision)
• Light Industrial Workshops (equipment status, on-site environment monitoring)
• Education & Healthcare (asset management, small-scale device data collection)
• Smart Hospitality (room environment control, energy saving)
With IP30 protection and stable connectivity, it perfectly fits all indoor LoRaWAN application needs.
Application Case

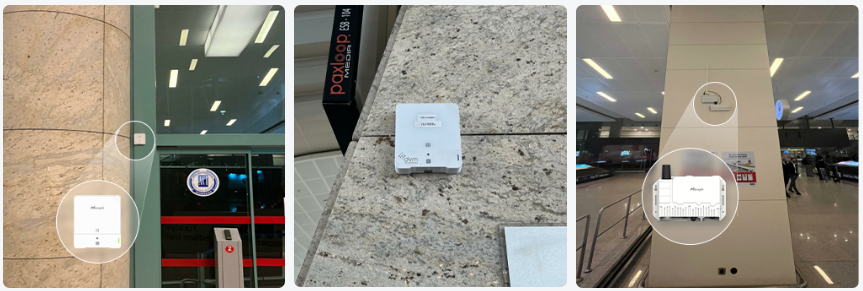

Fluctuating passenger volumes in high-traffic zones like lounges, gates and food courts cause abrupt indoor air quality variations, compounded by the inefficiency of manual checks that fail to capture real-time changes and leave monitoring blind spots—ultimately making it extremely difficult to maintain consistent air quality in dynamic indoor environments.

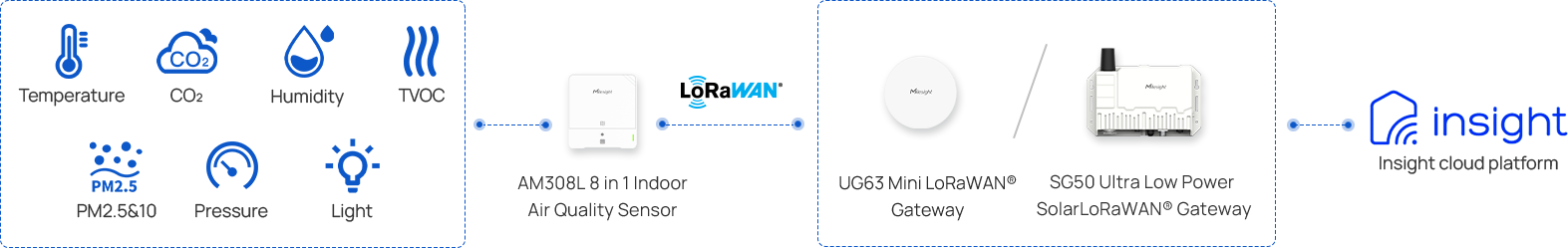

• AM308L 8-in-1 indoor air quality sensors monitor key metrics (Temperature, CO₂, Humidity, TVOC, PM2.5&10, Pressure, Light)
• UG63 Mini LoRaWAN® Gateway aggregates real-time sensor data via LoRaWAN® technology
• SG50 Ultra Low Power Solar LoRaWAN® Gateway extends coverage for outdoor or hard-to-reach areas
• Insight Cloud Platform enables centralized data management, visualization and alerting via an intuitive dashboard
Result: Enabled continuous, real-time monitoring of indoor air quality across high-traffic zones, ensuring a healthy and comfortable environment for passengers and staff while enabling proactive facility management.
