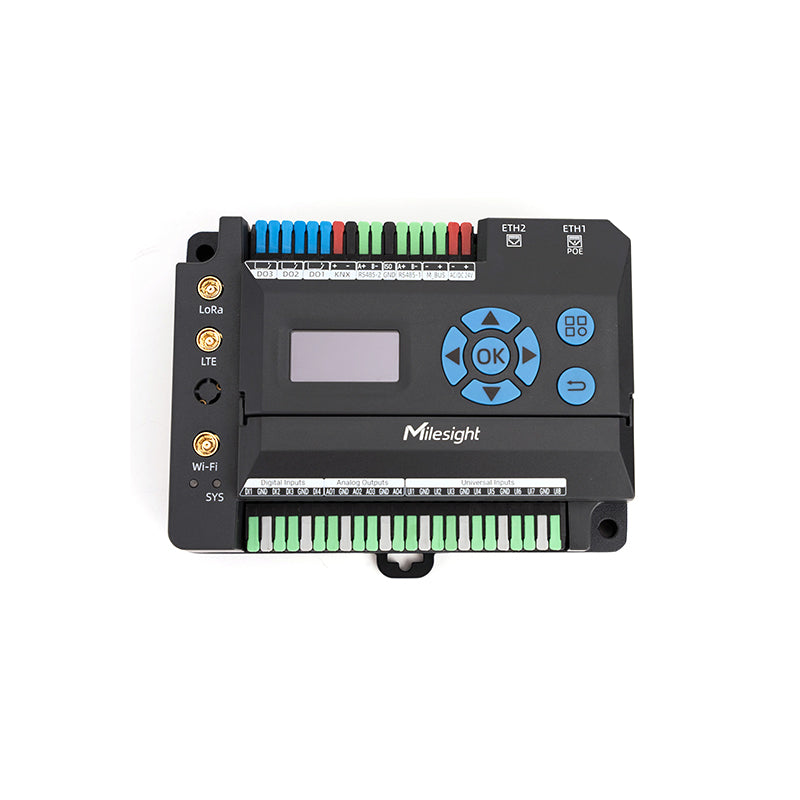

EG71 is an intelligent edge IoT gateway that unifies wired and wireless connectivity in a single device, simplifying data aggregation, protocol conversion, and local control for smart building integration across both new construction and retrofit projects.
Product Features
Purchase Ways
| Processor | Quad‑core 1.5 GHz 64‑bit ARM Cortex‑A53 |
| Memory & Flash | 2GB DDR4 RAM, 32GB eMMC |
| LoRaWAN | 8‑Channel,‑140dBm Sensitivity, V1.0/V1.0.2 Class A/B/C |
| Physical Interfaces | RS485 ×2, KNX, M‑BUS(Dev.), 8×Universal Input, 3×Relay DO,4×Analog Output |
| Network Backhaul | Ethernet /4G LTE CAT1 /Wi‑Fi Multi‑backhaul Redundancy |
| Software Features | VPN, Firewall, Python SDK, Node‑RED, Docker, Built‑in LoRaWAN NS |
| Power Supply | 24V DC/AC, PoE 802.3af, USB‑C 5V/3A |
| Power Consumption | Typical 8.2W, Max 11.24W |
| Protection Rating | IP30,‑40°C ~ +60°C Operating Temp |
| Installation | DIN‑rail & Wall‑mount |
| Certifications | CE, CE(RED), FCC |
Application scenarios

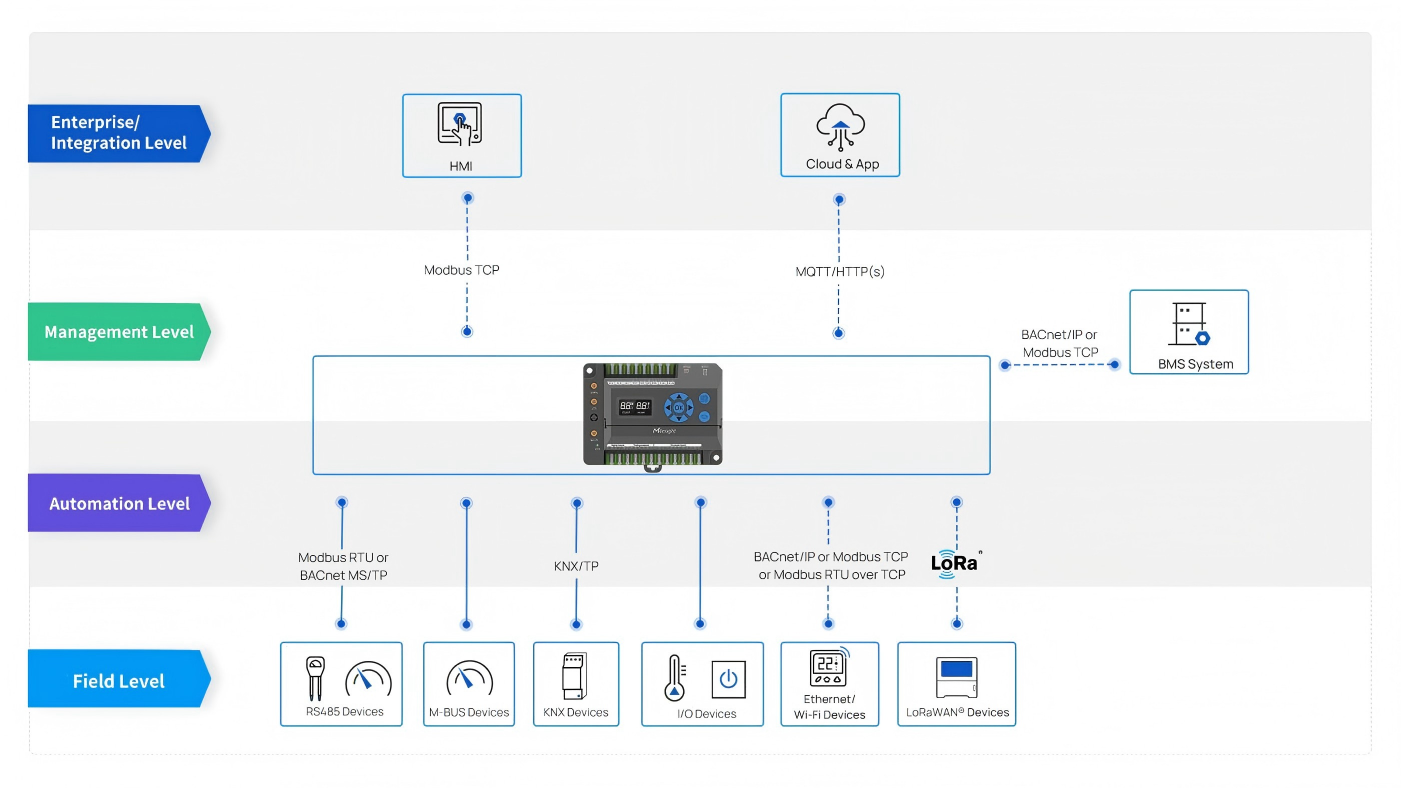

The EG71 connects diverse field devices across commercial buildings, campuses, hotels and industrial sites‑‑enabling HVAC control, energy management, KNX/BMS integration, and building automation with rich local I/O and multi‑protocol support.
