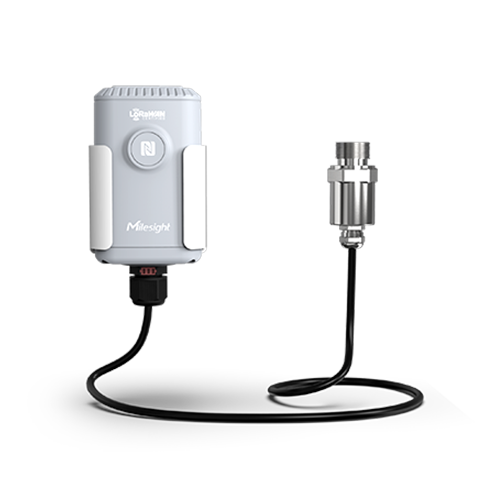

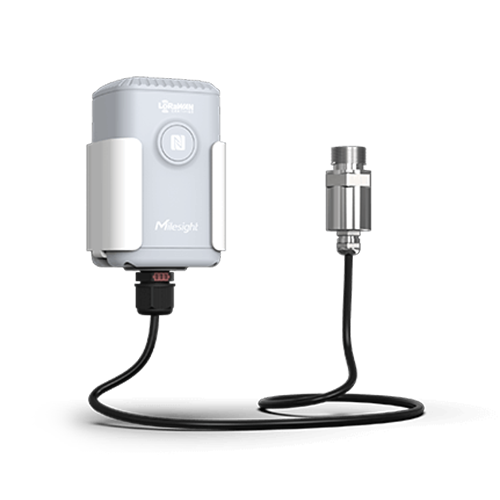

EM500-PP Pipe Pressure Sensor

Name: EM500-PP Pipe Pressure Sensor
Brand: Jinan Huayng Automation Technology Co.,Ltd.
Availability: OutOfStock

Engineered for accurate pipe pressure measurement in harsh environments, EM500-PP delivers stable and reliable data with long-term durability. It features a corrosion-resistant 316L stainless steel probe, ultra-low power consumption for maintenance-free operation, and long-range LoRaWAN® wireless transmission. Paired with Milesight gateway and IoT platform, it enables real-time remote monitoring, data storage, alarm notification and visual management for various pipeline and pressure monitoring applications.

1/2

EM500-PP Pipe Pressure Sensor

Product Features

High precision pressure measurement with corrosion-resistant 316L stainless steel probe
IP67 waterproof transceiver for harsh environment use
19000mAh large battery, up to 10 years lifetime
LoRaWAN® wireless transmission, 10km line-of-sight range
Local data storage, retransmission and threshold alarm
NFC & USB Type-C for quick and easy configuration
G1/2" male process connection for easy installation
Supports pole, wall or DIN rail mounting

Purchase Ways

Pressure Sensor Technical Parameters

Pressure Sensor Technical Parameters
Parameter	Specification
Measuring range	0–1600 kPa (16 Bar)
Accuracy & Resolution	±0.5% FS; Resolution: 1 kPa (0.01 Bar)
Probe	316L stainless steel, IP65
Transceiver	IP67, operating temp -30°C to 70°C
Power	19000mAh battery, up to 10 years battery life
Connectivity	LoRaWAN® Class A, up to 10km transmission
Configuration	NFC & USB Type-C
Installation	Pole / wall / DIN rail mountable

Application scenarios

Widely used in pipe and tank pressure monitoring, water leak detection, pump monitoring, and oil & gas industrial monitoring.

Application Case

◂ Pain Point▸

Precision Monitoring Gap: Unique soil conditions across fields require precise monitoring, but traditional methods fail to deliver accurate, real-time soil moisture and temperature data.

Integration Complexity: Hassle-free integration of soil sensors and devices into third-party irrigation management apps (with uplink/downlink data flow) is lacking.

Scalability & Cost Barriers: Existing solutions are costly, hard to deploy, and not easily scalable across multiple farms.

Pump Protection Limitation: Current pump protection systems are prohibitively expensive, leaving farmers without affordable alternatives.

◂ Solution▸

Deploy a cost-effective, scalable LoRaWAN® smart agriculture solution:

EM500-SMTC Soil Moisture & Temperature Sensor: Delivers precise real-time soil data to support tailored irrigation for unique field conditions.

EM500-PP Pipe Pressure Sensor: Provides affordable protective monitoring for water lines and pumps, replacing costly legacy systems.

UC511-DI Controller: Manages solenoid valves, water pumps, and sprayers to automate irrigation based on sensor insights.

UG67 LoRaWAN® Gateway: Ensures reliable long-range connectivity for all field devices.

Milesight Development Platform: Enables seamless integration with Digital Cache’s irrigation management app, supporting bidirectional data flow (uplink/downlink).

Result: This solution delivers precise soil monitoring, hassle-free device integration, cost-effective scalability, and affordable pump protection, enabling data-driven smart irrigation while reducing operational costs for farmers.
