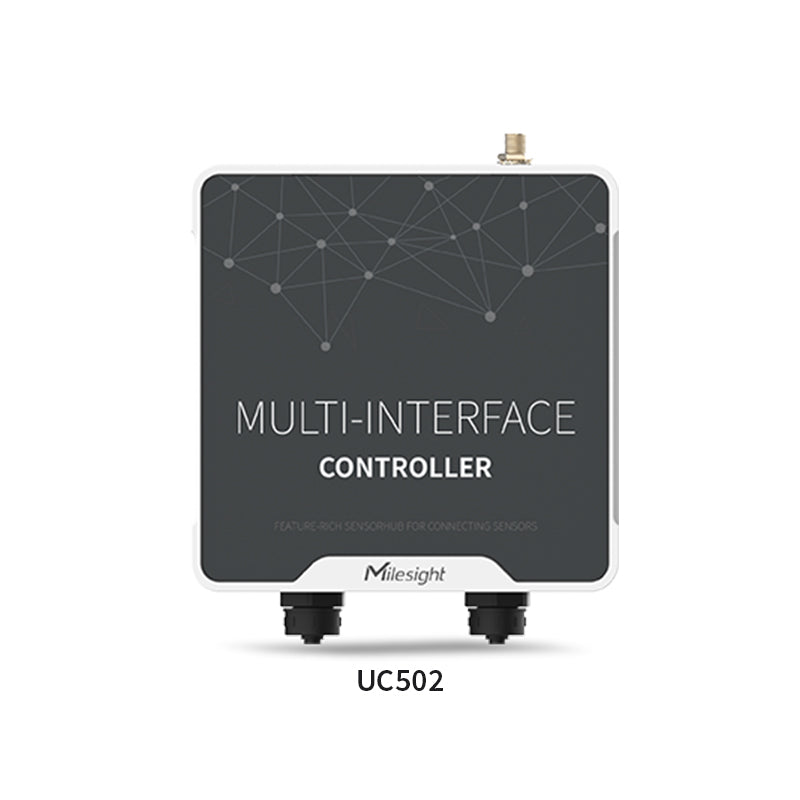

UC501 & UC502 Multi-Interface Controller

Name: UC501 & UC502 Multi-Interface Controller
Brand: Jinan Huayng Automation Technology Co.,Ltd.
Availability: OutOfStock

UC50x (UC501/UC502) is an industrial-grade multi-interface IoT controller with dual wireless versions (LoRaWAN®/Cellular), designed for harsh outdoor environments for multi-device data acquisition and remote control. Equipped with rich GPIO/AI/RS232/RS485/SDI-12 interfaces, IP68 waterproof enclosure and M12 connectors, it supports flexible power supply (solar/battery/DC 5-24V) and NFC quick configuration. The dual-model design and dual wireless modes meet the networking needs of different scenarios, realizing stable data collection, local storage and alarm push for industrial, environmental and outdoor IoT applications.

1/2

UC501 & UC502 Multi-Interface Controller

Product Features

Dual wireless versions: LoRaWAN® (15km long distance) / Cellular (NB-IoT/Cat.M1, SIM card)

Rich interfaces: GPIO/4-20mA/0-10V/RS232/RS485/SDI-12, compatible with multiple wired sensors

IP68 extreme protection: M12 connectors, anti-water/dust, workable 1m underwater for 7 days

Flexible power supply: Solar panel + rechargeable battery / replaceable lithium battery / DC 5-24V

NFC quick configuration: No on-site wiring, one-click parameter setting

UC501/UC502 dual model: Adapt to different temperature and power demand scenarios

Data security: Local storage + retransmission, threshold/change alarm, prevent data loss

Wide compatibility: Support LoRaWAN® gateway/ TCP/UDP/MQTT/AWS, easy platform integration

Purchase Ways

UC501 & UC502 Parameters Comparison

UC501 & UC502 Parameters Comparison
Parameter	UC501	UC502
Work Mode (LoRaWAN® Ver)	OTAA/ABP Class A, Class C	OTAA/ABP Class A
Special Function (LoRaWAN® Ver)	Support multicast bulk control	No multicast function
Power Supply	2×2550mAh rechargeable battery + solar panel + DC5-24V	3×9000mAh replaceable Li-SOCl₂ battery + DC5-24V
Operating Temperature	-20°C ~ 60°C	-30°C ~ 70°C
Data Storage (Cellular Ver)	Up to 10,000 entries	Up to 10,000 entries
Data Storage (LoRaWAN® Ver)	600 entries	600 entries

LoRaWAN® vs Cellular Version Parameters Comparison

LoRaWAN® vs Cellular Version Parameters Comparison
Parameter	LoRaWAN® Version	Cellular (NB-IoT/Cat.M1) Version
Wireless Protocol	LoRaWAN® (Milesight D2D)	NB-IoT/Cat.M1 (Cat NB2/Cat M1)
Frequency Band	CN470/IN865/EU868/US915/AU915 etc.	B1/B2/B3/B4/B5/B8/B12/B13/B28 etc.
Antenna	Internal/External (SMA Female, optional)	Built-in antenna only
SIM Slot	No	1×Nano SIM (4FF), 1.8V
Transmission Range	15km line of sight	Rely on cellular base station (wide area networking)
Tx Power	16dBm(868MHz)/20dBm(915MHz)/19dBm(470MHz)	-
Sensitivity	-137dBm @300bps	-
Application Mode	LoRaWAN® gateway/ Milesight IoT Cloud	TCP/UDP/MQTT/AWS
Special Function	15km long-distance transmission	Cumulative number report (power saving)

Application scenarios

Widely used in outdoor IoT scenarios such as environmental monitoring, smart agriculture, industrial equipment data acquisition, water conservancy monitoring, smart irrigation and urban public facility management, especially suitable for harsh outdoor environments with high protection requirements and diverse networking needs.

Application Case

◂ Pain Point▸

Traditional agriculture faces critical inefficiencies: excessive water waste from uneven irrigation distribution, crop damage caused by imprecise watering practices, and labor-intensive manual monitoring that lacks real-time visibility for timely decision-making.
