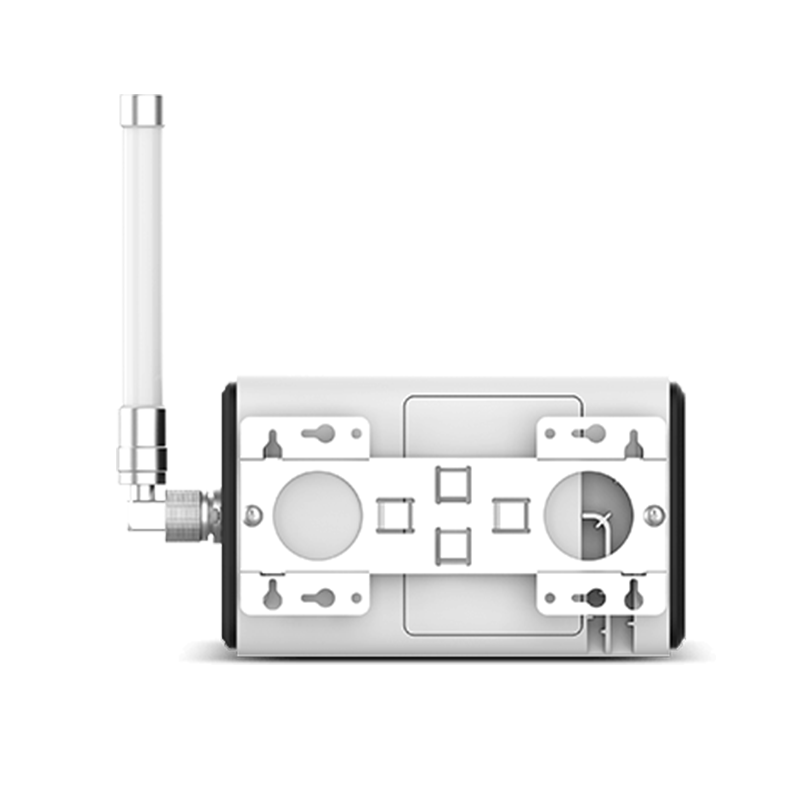

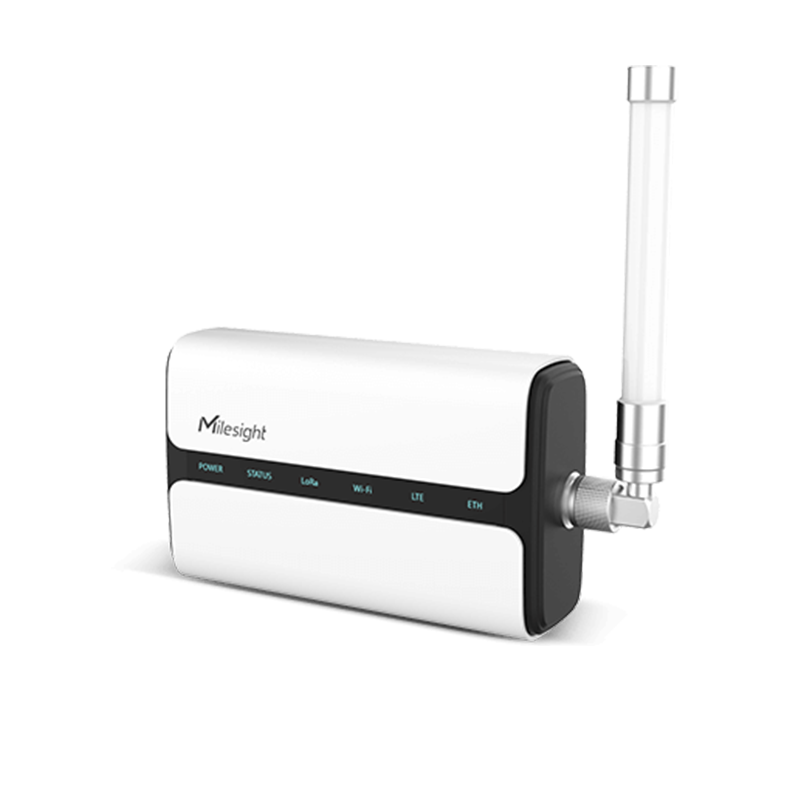

The UG65 is a semi-industrial 8-channel LoRaWAN gateway connecting 2,000+ nodes across 15 km for smart offices, buildings, and semi-outdoor environments. Triple backhaul backups with Ethernet, Wi-Fi, and 4G LTE, a built-in network server, and compatibility with TTN, ChirpStack, AWS, BACnet/IP, and Modbus streamline deployment and system integration.
Product Features
Purchase Ways
| Processor & Memory | Quad-core 1.5GHz ARM Cortex-A53, 512MB DDR4 RAM, 8GB eMMC |
| LoRa Channels | 8-channel half/full-duplex, SX1302 chip, supports 2000+ nodes |
| RF Performance | 27dBm TX power, -140dBm sensitivity, 15km LOS / 2km urban coverage |
| Network Interfaces | 1× Gigabit Ethernet (PoE), Wi-Fi 802.11b/g/n, optional 4G LTE |
| Power Supply | DC 9-24V / 802.3af PoE / USB-C 5V/1A, typical 2.9W consumption |
| Physical Specs | Dimensions 180×110×55.5mm, weight 548g, IP65 rating |
| Environmental | Operating temp -40°C to +70°C, humidity 0%-95% (non-condensing) |
| LoRaWAN Protocol | V1.0 & V1.0.2, Class A/B/C, built-in network server |
| Integration Protocols | MQTT(s)/HTTP(s), BACnet/IP, Modbus TCP/RTU, Node-RED/Python SDK |
| Security & Management | OpenVPN/IPsec/WireGuard & 3 more VPNs, DeviceHub remote management |
Application scenarios
The UG65 connects thousands of sensors across offices, buildings, and semi‑outdoor industrial sites—enabling smart facility management, automated metering, BMS/PLC integration, and industrial IoT monitoring with reliable 15 km line‑of‑sight coverage.
Application Case

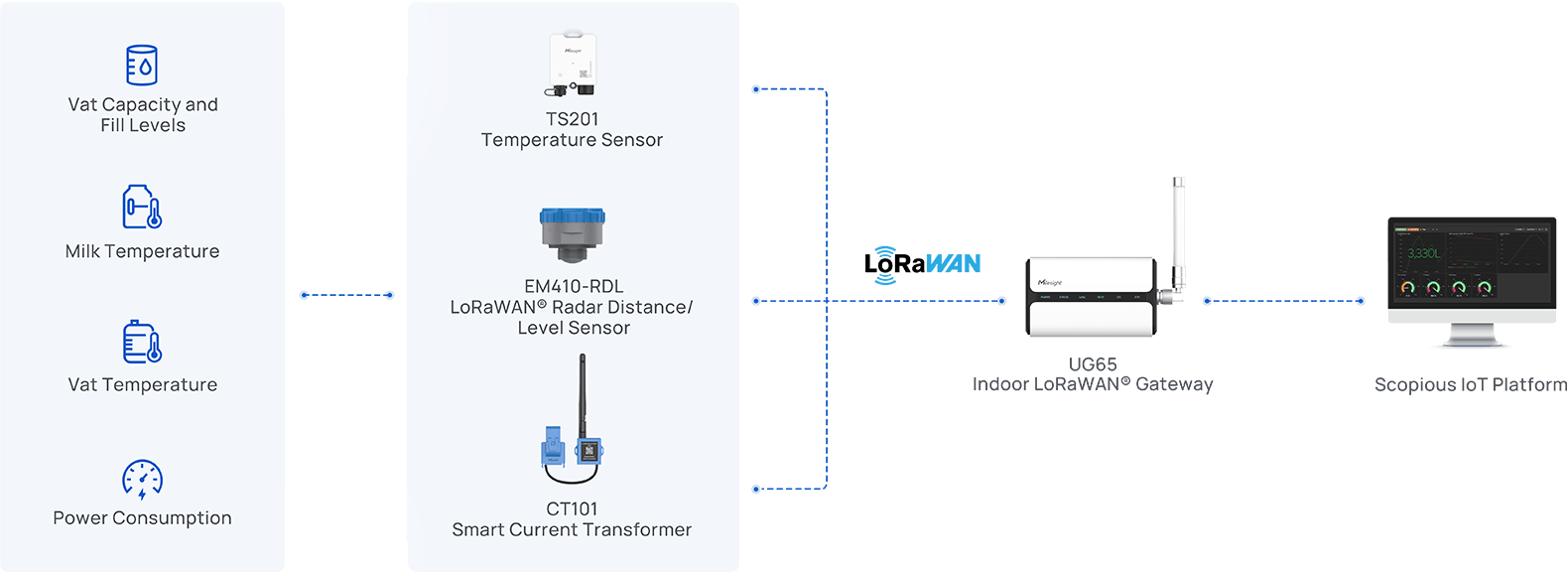

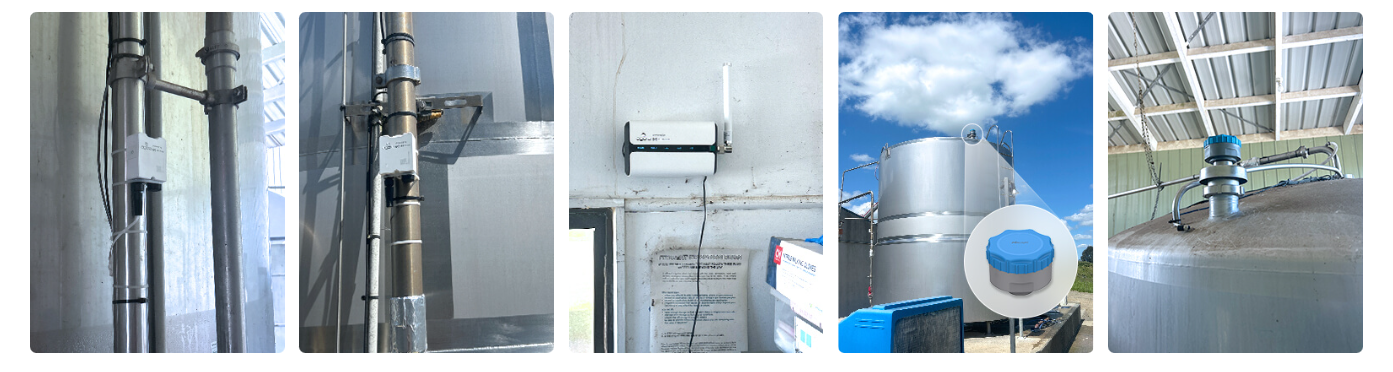

Dairy operations suffer from limited visibility into vat temperature, fill levels, and agitator performance; time‑intensive manual checks that pull farmers away from core duties; and the need for a plug‑and‑play system that scales without technical complexity.
• EM410‑RDL monitors vat capacity in real time
• CT101 and TS201 provide continuous agitator and temperature monitoring
• UG65 gateway connects all devices to the cloud
• Mobile app enables remote monitoring and instant control
Result: Less milk waste, assured compliance, complete vat visibility
